Mikrovlnný DFB laserový modul LK-NYDMD DWDM
- Direct Modulation DFB Laser
- Vysoký dynamický dosah
- Wavelength: CWCM
- Šírka pásma 18 GHz
- Low threshold current
- Vysoký výstupný výkon
- 7pin butterfly package with SMA connector
- Operating case temperature: -40 to 70℃
- Zvýšená spoľahlivosť
Popis produktu
LK-NYDMD laser is superior directly modulated distributed feedback (DFB) laser designed to deliver outstanding performance in linear fiber optic communications for applications that demand extremely broad bandwidths. Serving as a cutting-edge alternative to traditional coaxial cable systems, LK-NYDMD excels at transmitting high-frequency signals of 12 GHz or 18 GHz.
By preserving the integrity of the RF signal in its original form, these lasers significantly enhance the reliability of microwave communication networks. Thanks to these attributes, LK-NYDMD markedly improves signal quality across a diverse range of applications, such as remote antenna control, telemetry, distribution of timing and reference signals, as well as measurement and delay line systems.
LK-NYDMD features an integrated optical isolator, thermoelectric cooler (TEC), thermistor, laser diode chip, and monitor photodiode, all of which are sealed within a robust 7-pin butterfly package to ensure hermetic protection and maintain peak performance.
Technické špecifikácie
| aboslútne maximálne hodnotenie | ||||
|---|---|---|---|---|
| Parameter | symbol | minúta | Max. | Jednotka |
| Laser diode forward current | If | - | 120 | mA |
| Laser diode reverse voltage | V | - | 1 | V |
| Predná sila | Pf | - | 20 | dBm |
| PD reverse voltage | V | - | 15 | V |
| Forward current (PD) | Im | - | 2 | mA |
| Prevádzková teplota | To | -40 | + 70 | ° C |
| skladovacia teplota | Ts | -55 | + 85 | ° C |
| Storage relative humdity | Sr | - | 85 | % |
| Optical and Electrical Specification (Tc=25°C) | |||||||
|---|---|---|---|---|---|---|---|
| Parameter | symbol | Skúšobný stav | Min | Typ | max | Jednotky | Poznámky |
| Vlnová dĺžka | λ | IF = IOP, T = TOP | DWDM (ITU) 1550 - |
nm | |||
| Frekvencia | - | X Option | 0.1 | - | 12 | GHz | - |
| Ku option | 1 | - | 18 | ||||
| Optický výstupný výkon | P | IF=Iop | - | 10 | - | mW | 1 |
| Thershold current | Ith | λ=1550nm | - | - | 10 | mA | - |
| Operation current | Iop | λ=1550nm | - | 55 | 100 | mA | - |
| Prevádzkové napätie | Vop | λ=1550nm | - | 1.5 | 2.5 | V | - |
| Efektivita svahu | SE | - | 0.2 | - | - | W / A | - |
| Pomer potlačenia bočného režimu | SMSR | λ=1550nm ,IF=Iop | 30 | - | - | dB | - |
| Rative Intensity Noise | RIN | - | -150 | -130 | dB / Hz | - | |
| Bandwidth (-3dB,I=60mA) | S21 | X Option | - | 12 | - | GHz | - |
| Ku option | - | 18 | - | ||||
| Návrat straty | PSV | X Option | - | - | 2 | dB | - |
| Ku option | - | - | 2.2 | ||||
| Vstupná kompresia 1 dB | - | 15 | - | - | dBm | - | |
| Thermistor Resistance | Rth | @ 25 ° C | - | 10 | - | Kohm | - |
| TEC current | It | - | - | - | 1.2 | A | 2 |
| TEC voltage | Vt | - | - | 2.5 | V | 2 | |
| Capacitance (PD) | Ct | - | - | 20 | pF | - | |
| Monitorovací prúd | Im | - | 0.10 | - | 2.0 | mA | - |
| Dark current (PD) | Id | - | - | 50 | nA | - | |
Poznámky:All laser chips come from wafers that have been certified using a representative lot of devices that must achieve an acceptable yield for burn-in.
1.Laser temperature set 25℃, bias current at 55mA
2. Operation case temperature -40~70℃
● Typické údaje
(λ=1550nm, TC =25 ℃)
（ Fig. 1 X- Band S11 and S22 data ）

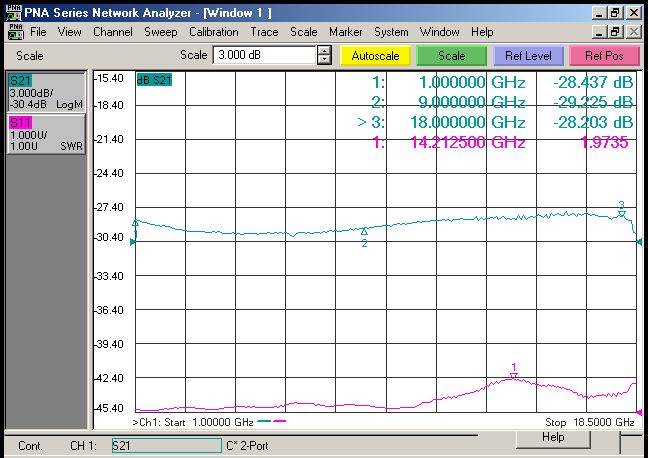

（ Fig. 2 Ku- Band S11 and S22 data ）

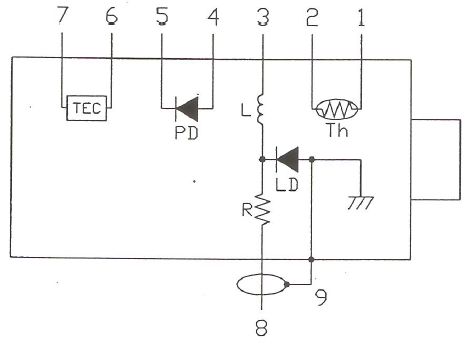

● Electrical schematic
| Lead# | Funkcie |
| 1 | termistor |
| 2 | termistor |
| 3 | LD-(Bias) |
| 4 | PD+ |
| 5 | PD- |
| 6 | Cooler+ |
| 7 | Cooler- |
| 8 | LD-(RF) |
| 9 | prízemný |
● Outline drawings(Unit: mm[inch])
RF Connector: SMA
● Informácie o objednávke
Hárok 1：
| kód | Popis |
| DM | DWDM (Dense Wavelength Division Multiplexing) 7 PIN butterfly package |
Hárok 2：
| kód | Analógová šírka pásma |
| X | 0.1 ～ 12 GHz |
| Ku | 1 ～ 18 GHz |
Hárok 3：
| kanál | Frekvencia (THz) | Stredová vlnová dĺžka (nm) | kanál | Frekvencia (THz) | Stredová vlnová dĺžka (nm) | |
| C01 | Any desired custom wavelength | C37 | 193.7 | 1547.72 | ||
| C02 | Non-ITU, 1547 nm – 1560 nm | C38 | 193.8 | 1546.92 | ||
| C03 | Non-ITU, 1557 nm – 1560 nm | C39 | 193.9 | 1546.12 | ||
| C04 | Non-ITU, 1530 nm – 1560 nm | C40 | 194 | 1545.32 | ||
| C15 | 191.5 | 1565.50 | C41 | 194.1 | 1544.53 | |
| C16 | 191.6 | 1564.68 | C42 | 194.2 | 1543.73 | |
| C17 | 191.7 | 1563.86 | C43 | 194.3 | 1542.94 | |
| C18 | 191.8 | 1563.05 | C44 | 194.4 | 1542.14 | |
| C19 | 191.9 | 1562.23 | C45 | 194.5 | 1541.35 | |
| C20 | 192 | 1561.41 | C46 | 194.6 | 1540.56 | |
| C21 | 192.1 | 1560.61 | C47 | 194.7 | 1539.77 | |
| C22 | 192.2 | 1559.79 | C48 | 194.8 | 1538.98 | |
| C23 | 192.3 | 1558.98 | C49 | 194.9 | 1538.19 | |
| C24 | 192.4 | 1558.17 | C50 | 195 | 1537.4 | |
| C25 | 192.5 | 1557.36 | C51 | 195.1 | 1536.61 | |
| C26 | 192.6 | 1556.55 | C52 | 195.2 | 1535.82 | |
| C27 | 192.7 | 1555.75 | C53 | 195.3 | 1535.04 | |
| C28 | 192.8 | 1554.94 | C54 | 195.4 | 1534.25 | |
| C29 | 192.9 | 1554.13 | C55 | 195.5 | 1533.47 | |
| C30 | 193 | 1553.33 | C56 | 195.6 | 1532.68 | |
| C31 | 193.1 | 1552.52 | C57 | 195.7 | 1531.9 | |
| C32 | 193.2 | 1551.72 | C58 | 195.8 | 1531.12 | |
| C33 | 193.3 | 1550.92 | C59 | 195.9 | 1530.33 | |
| C34 | 193.4 | 1550.12 | C60 | 196 | 1529.55 | |
| C35 | 193.5 | 1549.32 | C61 | 196.1 | 1528.77 | |
| C36 | 193.6 | 1548.51 | C62 | 196.2 | 1527.99 | |
Hárok 4:
| kód | Typ konektora | Poznámka |
| A | FC / APC | Single-mode 9 / 125 μm fiber pigtail, 0.9mm, 1m length |
| S | SC / APC | |
| N | Bez konektora |
● Bezpečnostné opatrenia
The fiber bending radius no less than 20 mm for avoiding fiber damaged.
Pred pripojením optického vlákna k optoobvodu sa uistite, že jeho spojovacia strana je čistá.
Pri skladovaní, preprave a používaní je potrebná vhodná ochrana proti elektrostatickej výboji (ESD).
použitie
Vysokorýchlostná dátová komunikácia
Vzdialkové ovládanie antény
Mobilné a PCS siete
Analógový prenos RF liniek
Vojenská komunikácia
Sledovanie, telemetria a riadenie
Telemetrické systémy
Vojenské a obranné systémy
